No Limit power supplies CC

NL PSU CC 50 DA DT8 TW

Product features

NoLimit's broad portfolio requires an adequate electrical supply: voltage-controlled for applications in the low power range, current-controlled for mid and high power.
The operating devices are accommodated in the profiles or are fastened outside. Power supplies that are mounted outside of the mounting profile are identified in the product code by an appended E marked ("external").

Technical specifications

Control Performance index Protection class
DALI dt8 19 ... 81 IP20

Characteristics

Ambient temperature +5 ... + 35 ° C
Storage & transport temperature -25 ... + 70 ° C
Nominal voltage AC 220 ... 240 V
Nominal frequency 50/60 Hz
Output current 2 x 900 mA (dt8)
Standby power <0.15 W
Weight approx. 1 kg
Housing material aluminum
Protection class I.
Protection class IP20
Connection type Plug-in terminals

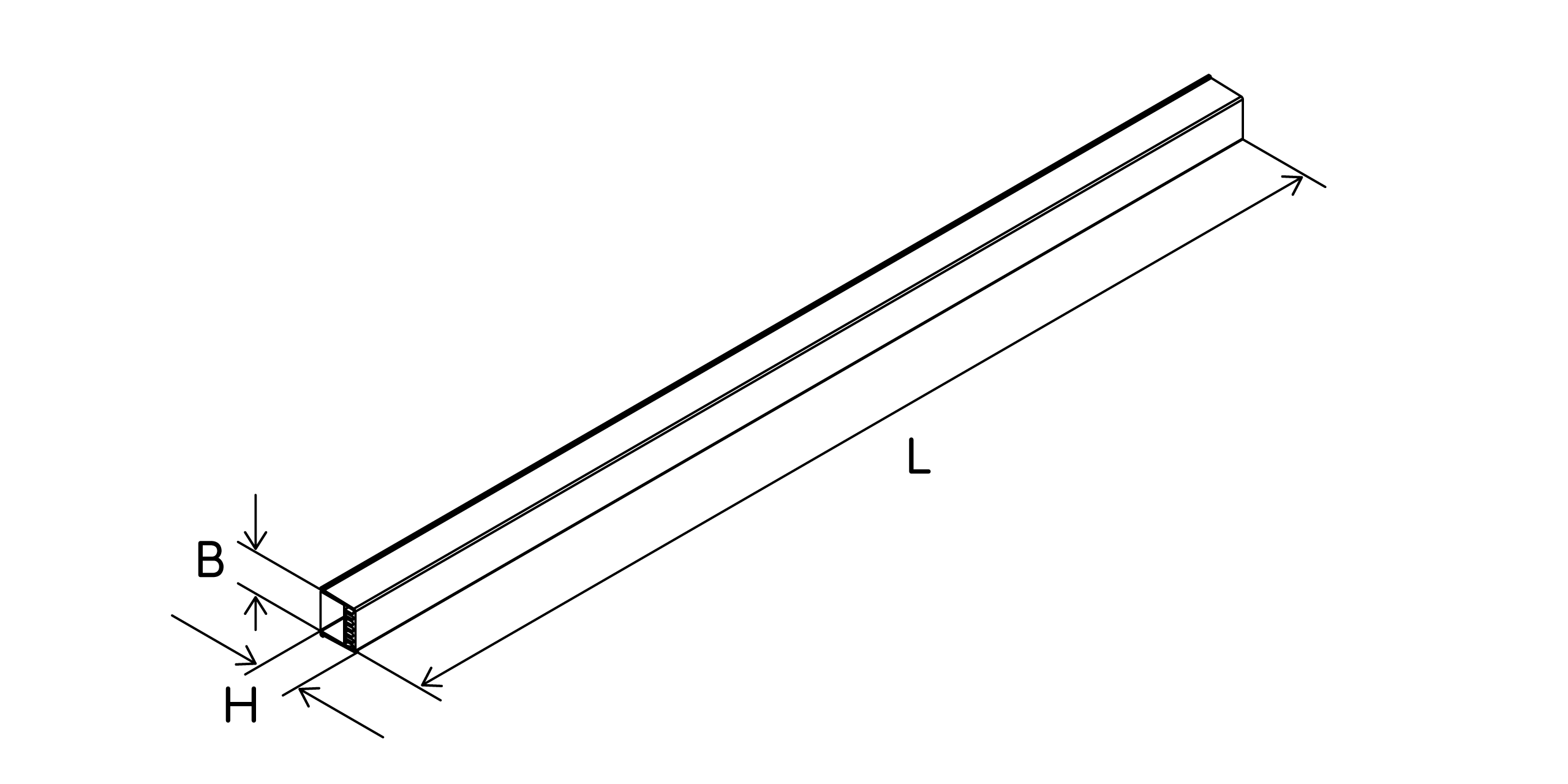

Dimensions

Width (B) Height (H) Length (L)
38 mm 32 mm 800 mm
