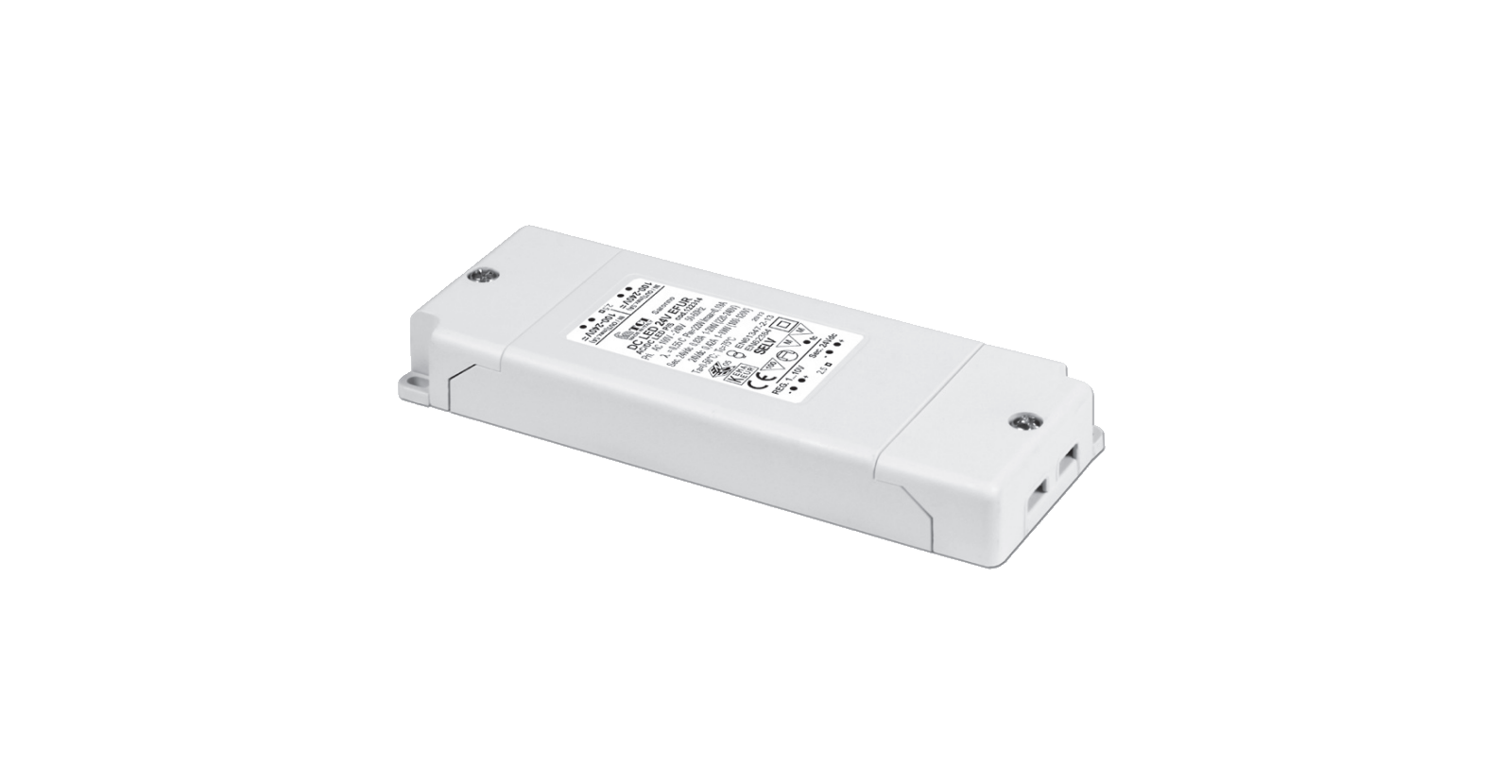

PSU 28V 20W

Constant voltage power pack for supplying LED lamps and LED lines with DC 28 V. The power pack is ideal for operating LEDLUX LN, LEDLUX LS or LEDLUX LX light lines with an LED output of up to 20W.

properties

lifespan 50,000 h
Ambient temperature -25 ... +50°C
nominal voltage DC 100...120V
AC 220 ... 240 V
Nominal frequency 50/60 Hz
Weight 0.13kg
Housing material plastic
Protection class II
Protection class IP20
Connection type Screw terminals (up to 2.5mm² / AWG13)

Configurations

Product CodelengthwidthheightControl
PSU 28V 20W146 mm55 mm19 mm1-10V
