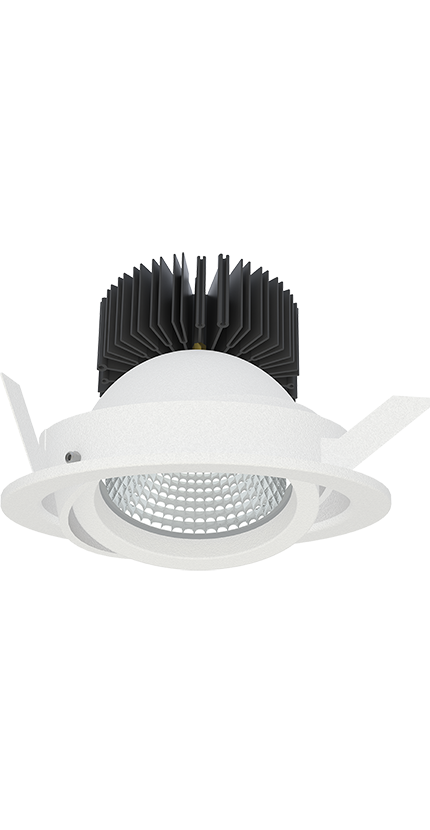

Recessed directional spotlight, rotatable and swiveling
Mounting ring made of sheet steel, powder-coated
Heat sink made of extruded aluminum, black anodized
Housing made of die-cast aluminum with bayonet lock
Safety glass and reflector integrated in the bayonet ring
All visible parts powder-coated according to RAL
Aluminum reflector, polished and anodized
Toolless installation thanks to spring technology
excl. LED converter
| lifespan | L70B50 50,000 h @ 25 ° C |
| Ambient temperature | +5 ... + 35 ° C |
| Storage & transport temperature | -25 ... + 70 ° C |
| Weight | approx. 1.9 kg |
| Housing material | aluminum |
| Protection class | III |
| Protection mode | IP20 |
| Connection type | free end of line |
| Color fidelity | SDCM 3 |
| Colour rendering index | >90 |
| Installation dimensions diameter [mm] | 190 mm |
| Installation dimensions height [mm] | 180 mm |
| Installation dimensions ceiling thickness MIN [mm] | 3 mm |
| Installation dimensions ceiling thickness MAX [mm] | 18 mm |
| Product Code | emission angle | Light color | Luminous flux | diameter | Rated current | Control | performance recording |
|---|---|---|---|---|---|---|---|
| DL3 VR140.1 45 927 WH 13 IP20 CC |
13 °
|
2700 K
|
4820 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 927 WH 21 IP20 CC |
21 °
|
2700 K
|
4400 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 927 WH 33 IP20 CC |
33 °
|
2700 K
|
4450 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 927 WH 43 IP20 CC |
43 °
|
2700 K
|
4500 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 930 WH 13 IP20 CC |
13 °
|
3000 K
|
5010 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 930 WH 21 IP20 CC |
21 °
|
3000 K
|
4580 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 930 WH 33 IP20 CC |
33 °
|
3000 K
|
4990lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 930 WH 43 IP20 CC |
43 °
|
3000 K
|
4690 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 940 WH 13 IP20 CC |
13 °
|
4000 K
|
5400 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 940 WH 21 IP20 CC |
21 °
|
4000 K
|
4930 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 940 WH 33 IP20 CC |
33 °
|
4000 K
|
4990lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 940 WH 43 IP20 CC |
43 °
|
4000 K
|
5050 lm | 221 mm | max. 1200 mA | CC | 41.5 W. |
| DL3 VR140.1 45 TW WH 13 IP20 CC |
13 °
|
TW (2700 ... 5700 K)
|
221 mm | max. 1200 mA (dt8) | CC (dt8) | 41.5 W. | |
| DL3 VR140.1 45 TW WH 21 IP20 CC |
21 °
|
TW (2700 ... 5700 K)
|
221 mm | max. 1200 mA (dt8) | CC (dt8) | 41.5 W. | |
| DL3 VR140.1 45 TW WH 33 IP20 CC |
33 °
|
TW (2700 ... 5700 K)
|
221 mm | max. 1200 mA (dt8) | CC (dt8) | 41.5 W. | |
| DL3 VR140.1 45 TW WH 43 IP20 CC |
43 °
|
TW (2700 ... 5700 K)
|
221 mm | max. 1200 mA (dt8) | CC (dt8) | 41.5 W. |
