instalight 4020 DB LS KL42 - barrierefreie Handlaufbeleuchtung

instalight 4020 DB LS KL42

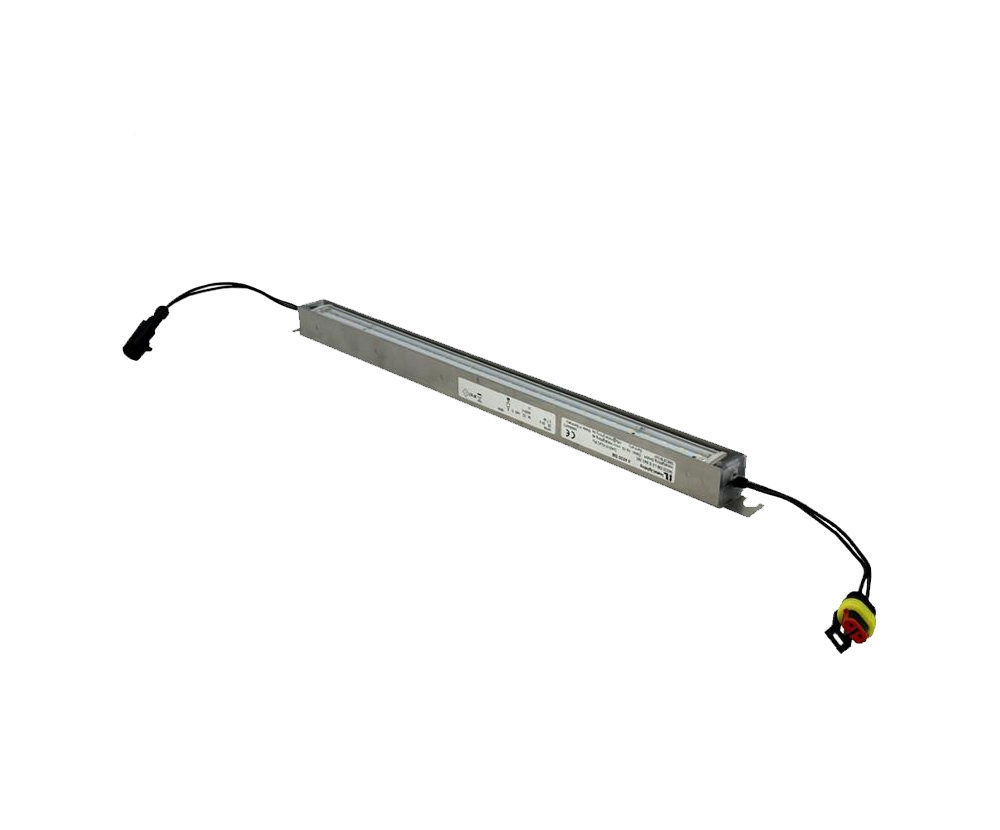

Handrail light il 4020 DB N24

Der lichtstarke Universal-Lichteinsatz aus V4A-Edelstahl ermöglicht eine hocheffiziente und zeitgemäße Ausleuchtung von Verkehrsbereichen. Das vollständig vergossene LED-Lichtelement lässt sich nahezu unsichtbar in Handlaufsysteme mit Nutbreiten von 24mm bzw. mit Handlauf-Durchmesser von 42,4mm integrieren und liefert eine gleichmäßige Lichtverteilung bei hoher Lichtqualität. Somit eignet sich unsere Leuchte auch für Handläufe mit einem Durchmesser bis 45 mm und erfüllt damit die Anforderungen an eine ergonomische, barrierefreie Greifbarkeit gemäß DIN 18040. Die instalight 4020 DB LS KL42 ist eine von der Deutschen Bahn (DB) zertifizierte und gelistete Handlaufleuchte für den Einsatz in Infrastrukturprojekten. Sie eignet sich für Beleuchtungslösungen im Bahnumfeld und verbindet die Funktion einer Handlaufleuchte mit den spezifischen Anforderungen an Beleuchtungskomponenten in der Bahninfrastruktur.

Characteristics

Lifespan L80B10 60,000h @ 25 ° C
Ambient temperature -25 ... + 45 ° C
Storage & transport temperature -25 ... + 70 ° C
Nominal voltage DC 28 V
Housing material Stainless steel V4A
Glow wire resistance 650 ° C
Protection class III
Protection mode IP67, IP69
Impact resistance IK10
Connection type Connectors
Color fidelity SDCM 3
Colour rendering index typ. 85
Installation dimensions width [mm] 24
Installation dimensions height [mm] 24 mm

Configuration and Order Code Generator for il 4020 DB

Your selection yielded no results!
Performance class

Select

Beam angle

Select

Light color

Select

Length

Select

Output line

Select

Housing color

Select

Handrail size

Select

Possible Configurations (16)

Product CodePerformance
class
Beam
angle
Light colorLuminous fluxLengthWidthHeightPerformance
recording
il 4020 DB LS S 840 385 2xK015 KL42 PU100%
70 ° x 120 °
4000 K
305 lm385 mm24 mm24 mm3.7 W
il 4020 DB LS75 S 840 385 2xK015 KL42 PU75%
70 ° x 120 °
4000 K
250 lm385 mm24 mm24 mm2,8 W
il 4020 DB LS50 S 840 385 2xK015 KL42 PU50%
70 ° x 120 °
4000 K
170 lm385 mm24 mm24 mm1,9 W
il 4020 DB LS25 S 840 385 2xK015 KL42 PU25%
70 ° x 120 °
4000 K
85 lm385 mm24 mm24 mm1,0 W
il 4020 DB LS S 840 710 2xK015 KL42 PU100%
70 ° x 120 °
4000 K
610 lm710 mm24 mm24 mm7,4 W
il 4020 DB LS75 S 840 710 2xK015 KL42 PU75%
70 ° x 120 °
4000 K
500 lm710 mm24 mm24 mm5.6 W
il 4020 DB LS50 S 840 710 2xK015 KL42 PU50%
70 ° x 120 °
4000 K
340 lm710 mm24 mm24 mm3,8 W
il 4020 DB LS25 S 840 710 2xK015 KL42 PU25%
70 ° x 120 °
4000 K
170 lm710 mm24 mm24 mm2,0 W
il 4020 DB LS S 840 1035 2xK015 KL42 PU100%
70 ° x 120 °
4000 K
915 lm1035 mm24 mm24 mm11,1 W
il 4020 DB LS75 S 840 1035 2xK015 KL42 PU75%
70 ° x 120 °
4000 K
750 lm1035 mm24 mm24 mm8.4 W
il 4020 DB LS50 S 840 1035 2xK015 KL42 PU50%
70 ° x 120 °
4000 K
510 lm1035 mm24 mm24 mm5.7 W
il 4020 DB LS25 S 840 1035 2xK015 KL42 PU25%
70 ° x 120 °
4000 K
255 lm1035 mm24 mm24 mm3,1 W
il 4020 DB LS S 840 1360 2xK015 KL42 PU100%
70 ° x 120 °
4000 K
1220 lm1360 mm24 mm24 mm14,8 W
il 4020 DB LS75 S 840 1360 2xK015 KL42 PU75%
70 ° x 120 °
4000 K
1000 lm1360 mm24 mm24 mm11.2W
il 4020 DB LS50 S 840 1360 2xK015 KL42 PU50%
70 ° x 120 °
4000 K
680 lm1360 mm24 mm24 mm7,6 W
il 4020 DB LS25 S 840 1360 2xK015 KL42 PU25%
70 ° x 120 °
4000 K
340 lm1360 mm24 mm24 mm4,1 W
