NoLimit's broad portfolio requires an adequate electrical supply: voltage-controlled for applications in the low power range, current-controlled for mid and high power.
The operating devices are accommodated in the profiles or are fastened outside. Power supplies that are mounted outside of the mounting profile are identified in the product code by an appended E marked ("external").
| Control | Performance index | Protection class |
|---|---|---|
| DALI | 4… 90 | IP20 |
| Ambient temperature | +5 ... + 35 ° C |
| Storage & transport temperature | -25 ... + 70 ° C |
| nominal voltage | AC 220 ... 240 V |
| Nominal frequency | 50/60 Hz |
| Weight | approx. 1 kg |
| Housing material | aluminum |
| Protection class | I. |
| Protection class | IP20 |
| Connection type | Plug-in terminals |

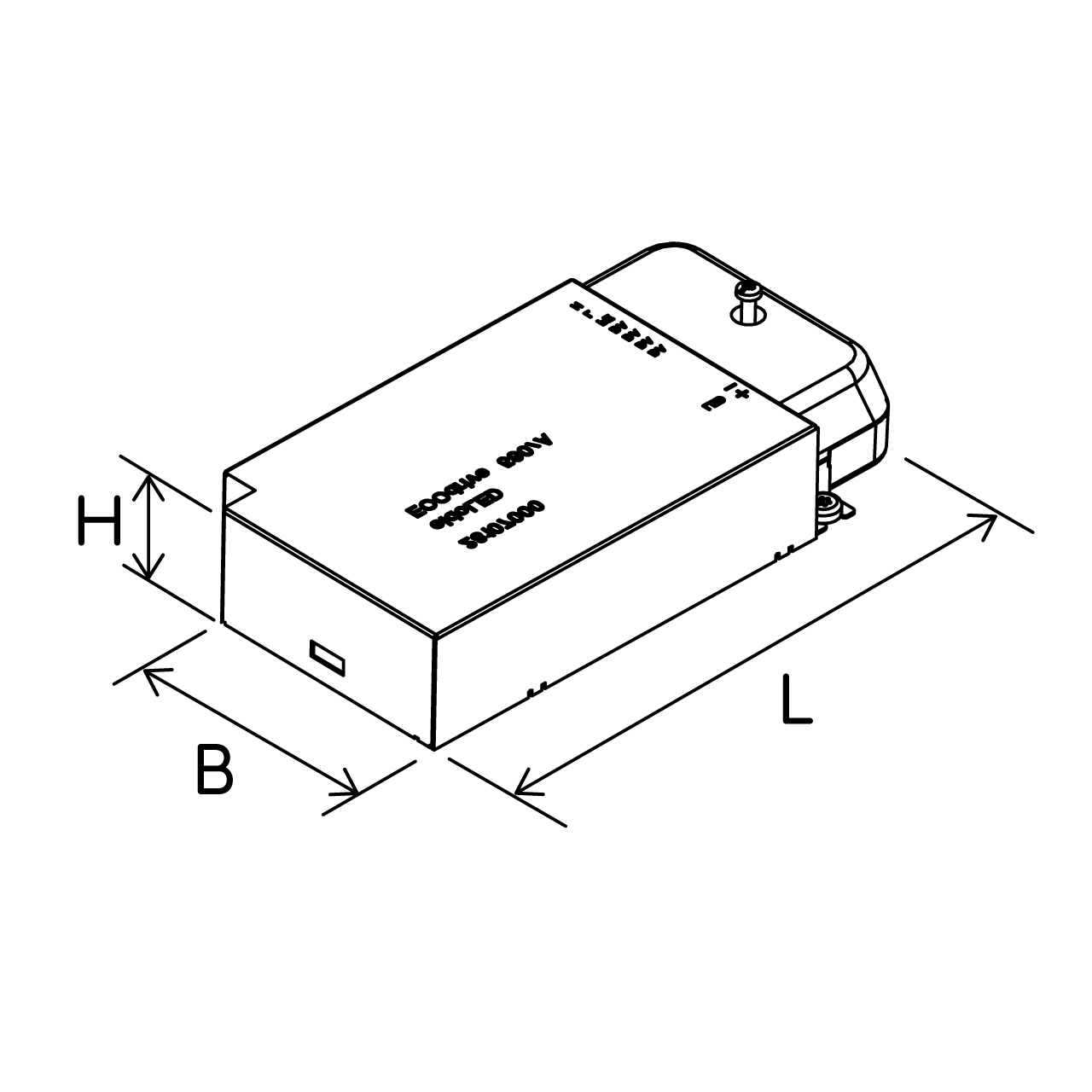

| Width (B) | Height (H) | Length (L) |
|---|---|---|
| 77 mm | 30 mm | 135 mm |
