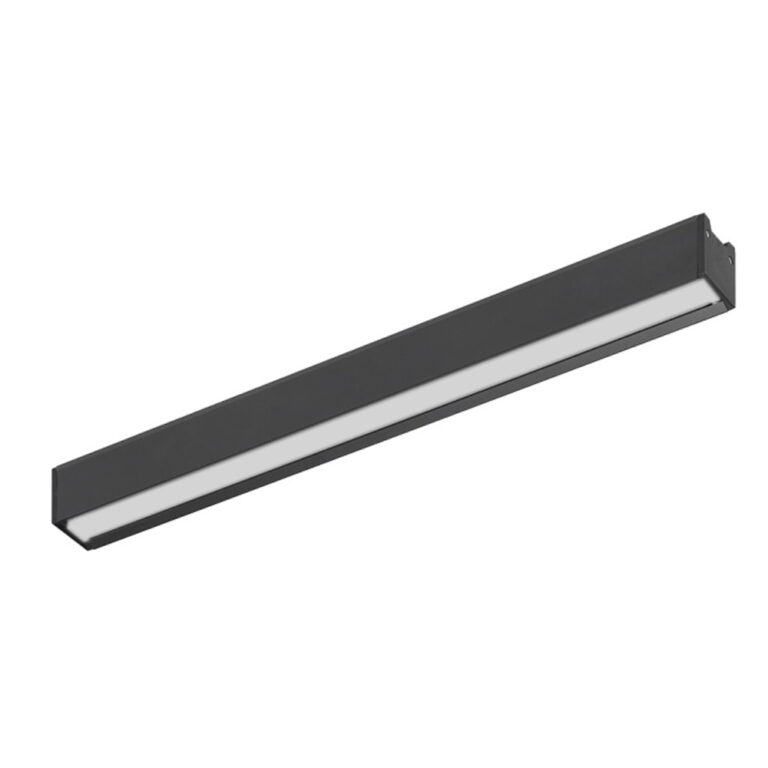

The NoLimit Pivot PV light inserts are ideal for demanding applications in the field of general lighting. The built-in LEDLUX lamps ensure uniform illumination.
The lights are operated using 24V constant voltage power supply units available as accessories. The luminaires are always supplied with input and output cables - a terminating plug is not required due to the circuit topology used. NoLimit Pivot PV can be ordered in a grid dimension of approx. 324 mm with a minimum length of 346 mm up to a maximum length of 1975 mm.
Der Lichteinsatz ist nur in NoLimit-Profilkanäle werkzeuglos einrastbar.
| Lifespan | L80B10 60,000h @ 25 ° C |
| Ambient temperature | -20 ... + 35 ° C |
| Storage & transport temperature | -25 ... + 70 ° C |
| Nominal voltage | DC 24 V |
| Weight | approx. 1.6 kg/m |
| Housing material | Aluminium pulverbeschichtet (RAL9011) LED-Profil Polycarbonat diffus |
| Glow wire resistance | 650 ° C |
| Protection class | III |
| Protection mode | IP65 |
| Impact resistance | IK06 |
| Connection type | Connector IP67 |
| Color fidelity | SDCM 3 |
| Colour rendering index | >90 |
| Product Code | Beam angle | Light color | Luminous flux | Length | Width | Height | Control | Performance recording |
|---|---|---|---|---|---|---|---|---|
| NL PV 998 930 DF CV L3 |
110 °
|
3000 K
|
ca. 2.500 lm/m | 346 ... 1975 mm | 41 mm | 48 mm | DALI über Netzteil | 24 W/m |
