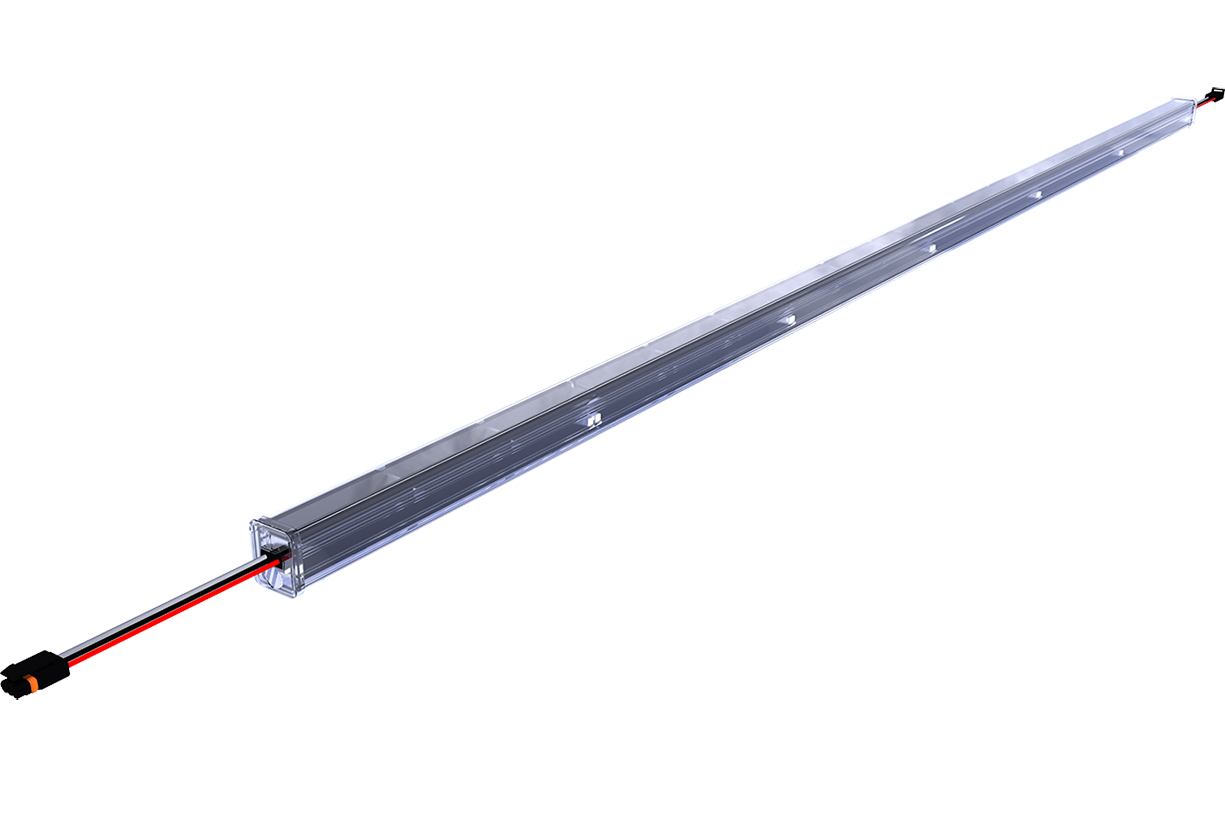

The linear light fixture LEDLUX optics delivers high-quality, directional light. The asymmetrical reflectors—specifically developed to fit within the housing dimensions—along with the tightly focused "Narrow" optics, direct the light precisely where it is needed. The RGB LED lines operate on a 24V constant voltage supply. The LED lines are controlled via LEDTRIX, allowing each 324 mm section to be individually addressed. Thanks to the proprietary circuit topology, all LED modules emit light with uniform intensity, maintaining a constant brightness across the entire length of the light strip. Ultrasonically welded end caps and IP67 connectors ensure easy installation while providing an overall IP65 protection rating, making LEDLUX suitable for use in sheltered outdoor environments. Depending on the application site, two types of mounting clips are available as accessories: fixed and rotatable. The rotatable clip allows the profile to be positioned in various directions, thereby enabling 360° alignment.
| Lifespan | L80B10 60,000h @ 25 ° C |
| Ambient temperature | -20 ... + 50 ° C |
| Storage & transport temperature | -25 ... + 70 ° C |
| Nominal voltage | DC 24 V |
| Weight | approx. 0.3 kg / m |
| Housing material | Polycarbonate |
| Glow wire resistance | 850 ° C |
| Protection class | III |
| Protection mode | IP65 |
| Impact resistance | IK06 |
| Connection type | Connector IP67 Cable length: 80mm |
| Color fidelity | SDCM 3 |
Select
Select
Select
Select
Select
Select
Select
| Product Code | Performance class | Beam angle | Light color | Luminous flux | Length | Width | Height | Control | Performance recording |
|---|---|---|---|---|---|---|---|---|---|
| LL OPLX 984 A RGB NAR L2 | Level 2 |
15 ° x 65 °
|
RGB
|
89, 307, 45lm/m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | Ledtrix | 18.9 W / m |
| LL OPLX 984 A RGB A1 L2 | Level 2 |
Asymmetric 01
|
RGB
|
89, 307, 45lm/m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | Ledtrix | 18.9 W / m |
| LL OPLX 984 A RGB A2 L2 | Level 2 |
Asymmetric 02
|
RGB
|
105, 362, 53lm/m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | Ledtrix | 18.9 W / m |
Modular lengths possible in a grid of approx. 324 mm (334 mm, 659 mm, 984 mm, 1309 mm, 1634 mm, 1959 mm)
Can be optionally ordered without an output cable.
If the beam angle is asymmetrical, it must be determined whether the input line is to be mounted on the left or right.
