LEDLUX optics

LEDLUX optics

LEDLUX optics

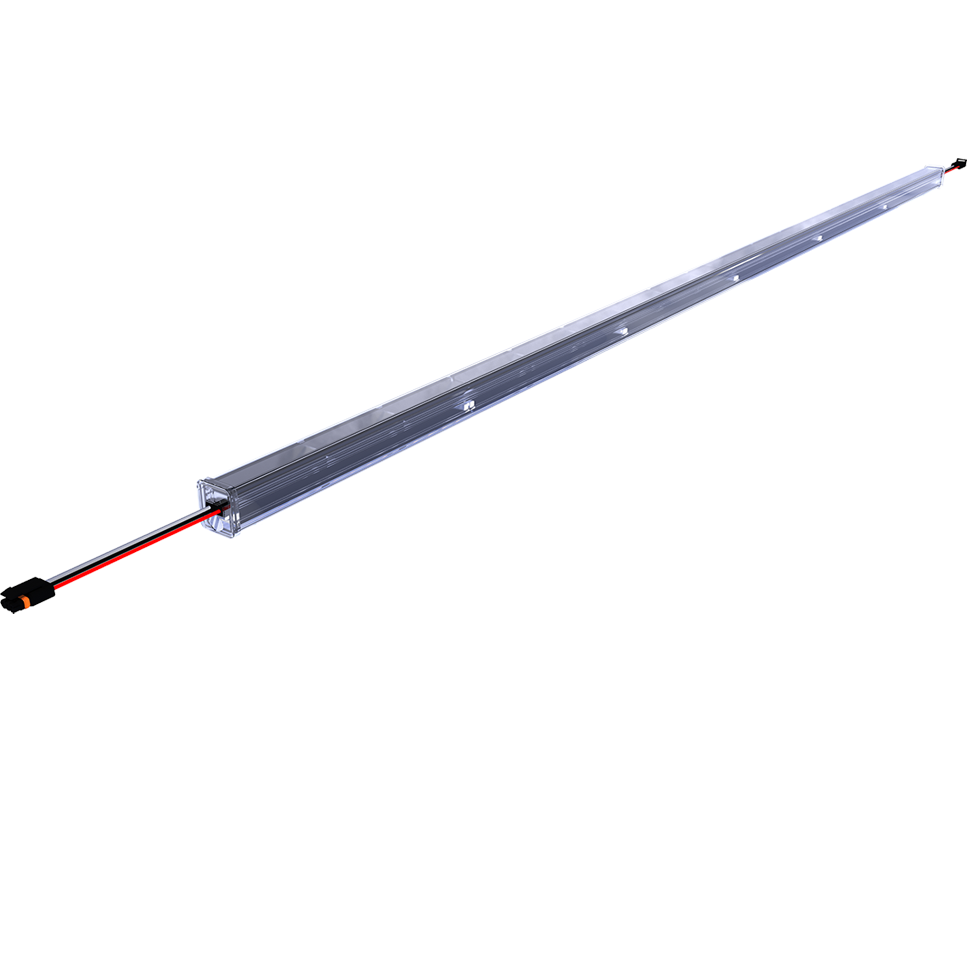

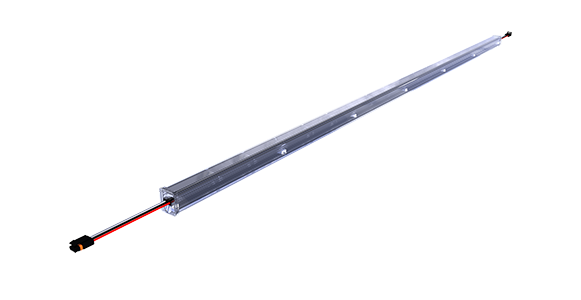

The linear line of light LEDLUX optics delivers high-quality, directional white light. The asymmetrical reflectors specially developed for the installation space and the narrow beam optics direct the light exactly where it is needed.
The LED lines are operated with 48V constant voltage. A dimming is completely flicker free from 1...100% via PWM signals possible through direct signal evaluation on the LED module. Thanks to the circuit topology developed, all LED modules shine with the same brightness and maintain constant brightness over the entire light string. Depending on the constellation, around 25m light line per power supply is possible at level 1, or around 10m at level 2. The ability of the modules to work in a large voltage range means that you are able to run cables between the power supply and light line of up to to lay 100m.
Ultrasonically welded end caps and IP67 connectors ensure easy assembly with an overall protection class of IP65, so that LEDLUX can also be used in the protected outdoor area. Depending on the location, two types of clamps are available as accessories: rigid and rotatable. The profile can be inserted into the rotatable clamp in different directions and thus enables an alignment of 360°.

properties

lifespan L80B10 60,000h @ 25 ° C
Ambient temperature L1 / L2: -20 ... + 50 ° C
L3: -20 ... + 35 ° C
Storage & transport temperature -25 ... + 70 ° C
nominal voltage DC 48 V
Weight approx. 0.3 kg / m
Housing material Polycarbonate
Glow wire resistance 850 ° C
Protection class III
Protection class IP65
Impact resistance IK06
Connection type Connector IP67
Color fidelity SDCM 3
Colour reproduction typ. 92

Configurations

Product Codeperformance
class
emission
angle
Light colorLuminous fluxlengthwidthheightControlperformance
recording
LL OP 984 A 922 NAR L1Level 1
15 ° x 65 °
2200 K
340 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 927 NAR L1Level 1
15 ° x 65 °
2700 K
430 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 930 NAR L1Level 1
15 ° x 65 °
3000 K
450 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 940 NAR L1Level 1
15 ° x 65 °
4000 K
490 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 922 NAR L2Level 2
15 ° x 65 °
2200 K
860 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 927 NAR L2Level 2
15 ° x 65 °
2700 K
1100 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 930 NAR L2Level 2
15 ° x 65 °
3000 K
1150 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 940 NAR L2Level 2
15 ° x 65 °
4000 K
1250 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 922 NAR L3Level 3
15 ° x 65 °
2200 K
1050 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 927 NAR L3Level 3
15 ° x 65 °
2700 K
1330 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 930 NAR L3Level 3
15 ° x 65 °
3000 K
1400 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 940 NAR L3Level 3
15 ° x 65 °
4000 K
1520 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 922 A1 L1Level 1
Asymmetric 01
2200 K
270 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 927 A1 L1Level 1
Asymmetric 01
2700 K
430 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 930 A1 L1Level 1
Asymmetric 01
3000 K
450 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 940 A1 L1Level 1
Asymmetric 01
4000 K
490 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 922 A1 L2Level 2
Asymmetric 01
2200 K
690 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 927 A1 L2Level 2
Asymmetric 01
2700 K
1100 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 930 A1 L2Level 2
Asymmetric 01
3000 K
1150 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 940 A1 L2Level 2
Asymmetric 01
4000 K
1250 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 922 A1 L3Level 3
Asymmetric 01
2200 K
840 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 927 A1 L3Level 3
Asymmetric 01
2700 K
1330 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 930 A1 L3Level 3
Asymmetric 01
3000 K
1400 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 940 A1 L3Level 3
Asymmetric 01
4000 K
1520 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 922 A2 L1Level 1
Asymmetric 02
2200 K
330 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 927 A2 L1Level 1
Asymmetric 02
2700 K
530 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 930 A2 L1Level 1
Asymmetric 02
3000 K
550 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 940 A2 L1Level 1
Asymmetric 02
4000 K
600 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire7 W / m
LL OP 984 A 922 A2 L2Level 2
Asymmetric 02
2200 K
840 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 927 A2 L2
Asymmetric 02
2700 K
1330 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 930 A2 L2Level 2
Asymmetric 02
3000 K
1400 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 940 A2 L2Level 2
Asymmetric 02
4000 K
1510 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire20 W / m
LL OP 984 A 922 A2 L3Level 3
Asymmetric 02
2200 K
1020 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 927 A2 L3Level 3
Asymmetric 02
2700 K
1620 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 930 A2 L3Level 3
Asymmetric 02
3000 K
1700 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m
LL OP 984 A 940 A2 L3Level 3
Asymmetric 02
4000 K
1840 lm / m172 ... 1959 mm20,5 mm24,5 mmD-Wire25 W / m

Modular lengths possible in a grid of approx. 162 mm (172 mm, 334 mm, 497 mm, 659 mm, 822 mm, 984 mm, 1147 mm, 1309 mm, 1472 mm, 1634 mm, 1797 mm, 1959 mm)
Optionally selectable without output line
Level 3: Restricted temperature range from -20… + 35 ° C
If the beam angle is asymmetrical, it must be determined whether the input line is to be mounted on the left or right.
