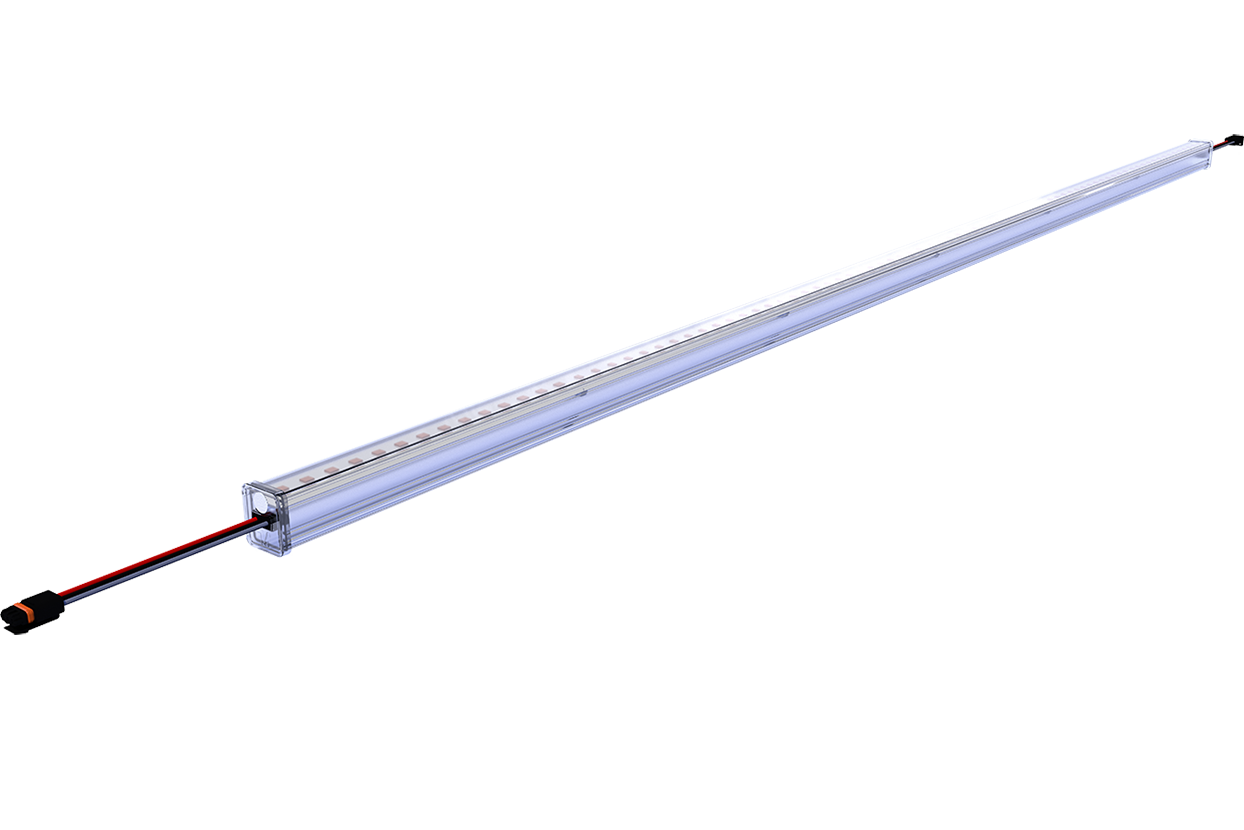

The linear LEDLUX light insert supplies high-quality white light. Due to its narrow LED arrangement, in combination with the specially developed extrusion profile, an almost homogeneously illuminated surface is created. The BWF premiumLIGHT® material used in the profile creates a pleasant lighting climate through low glare and high transmission at the same time. The usual "zebra crossings" are eliminated, which ensures the usual high quality of light from InstaLighting.
The LED lines are operated with 48V constant voltage. A dimming is completely flicker free from 1...100% via PWM signals possible through direct signal evaluation on the LED module. Thanks to the circuit topology developed, all LED modules shine with the same brightness and maintain constant brightness over the entire light string. Depending on the constellation, around 25m light line per power supply is possible at level 1, or around 10m at level 2. The ability of the modules to work in a large voltage range means that you are able to run cables between the power supply and light line of up to to lay 100m.
Ultrasonically welded end caps and IP67 connectors ensure easy assembly with an overall protection class of IP65, so that LEDLUX can also be used in the protected outdoor area. Depending on the location, two types of clamps are available as accessories: rigid and rotatable. The profile can be inserted into the rotatable clamp in different directions and thus enables an alignment of 360°.
lifespan | L80B10 60,000h @ 25 ° C |
Ambient temperature | L1 / L2: -20 ... + 50 ° C L3: -20 ... + 35 ° C |
Storage & transport temperature | -25 ... + 70 ° C |
nominal voltage | DC 48 V |
Weight | approx. 0.2 kg / m |
Housing material | Polycarbonate |
Glow wire resistance | 850 ° C |
Protection class | III |
Protection class | IP65 |
Impact resistance | IK06 |
Connection type | Connector IP67 |
Color fidelity | SDCM 3 |
Colour reproduction | typ. 92 |
Product Code | performance class | emission angle | Light color | Luminous flux | length | width | height | Control | performance recording |
---|---|---|---|---|---|---|---|---|---|
LL 984 A 922 CL L1 | Level 1 |
110 °
|
2200 K
|
630 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 927 CL L1 | Level 1 |
110 °
|
2700 K
|
650 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 930 CL L1 | Level 1 |
110 °
|
3000 K
|
650 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 940 CL L1 | Level 1 |
110 °
|
4000 K
|
720 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 922 CL L2 | Level 2 |
110 °
|
2200 K
|
1560 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 927 CL L2 | Level 2 |
110 °
|
2700 K
|
1560 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 930 CL L2 | Level 2 |
110 °
|
3000 K
|
1560 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 940 CL L2 | Level 2 |
110 °
|
4000 K
|
1720 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 922 CL L3 | Level 3 |
110 °
|
2200 K
|
1990 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 927 CL L3 | Level 3 |
110 °
|
2700 K
|
2000 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 930 CL L3 | Level 3 |
110 °
|
3000 K
|
2000 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 940 CL L3 | Level 3 |
110 °
|
4000 K
|
2210 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 922 DF L1 | Level 1 |
110 °
|
2200 K
|
550 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 927 DF L1 | Level 1 |
110 °
|
2700 K
|
560 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 930 DF L1 | Level 1 |
110 °
|
3000 K
|
560 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 940 DF L1 | Level 1 |
110 °
|
4000 K
|
620 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 7 W / m |
LL 984 A 922 DF L2 | Level 2 |
110 °
|
2200 K
|
1350 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 927 DF L2 | Level 2 |
110 °
|
2700 K
|
1350 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 930 DF L2 | Level 2 |
110 °
|
3000 K
|
1350 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 940 DF L2 | Level 2 |
110 °
|
4000 K
|
1490 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 16.5 W / m |
LL 984 A 922 DF L3 | Level 3 |
110 °
|
2200 K
|
1730 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 927 DF L3 | Level 3 |
110 °
|
2700 K
|
1730 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 930 DF L3 | Level 3 |
110 °
|
3000 K
|
1730 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LL 984 A 940 DF L3 | Level 3 |
110 °
|
4000 K
|
1910 lm / m | 172 ... 1959 mm | 20,5 mm | 24,5 mm | D-Wire | 21.5 W / m |
LEDLUX 48 is modularly available in the following lengths:
172mm, 253mm, 334mm, 415mm, 497mm, 578mm, 659mm, 740mm, 740mm, 822mm, 903mm, 984mm, 1065mm, 1147mm, 1228mm, 1309mm, 1390mm, 1472mm, 1553mm, 1634mm, 1715mm, 1797mm, 1878mm, 1959mm.
