OHR1 4020

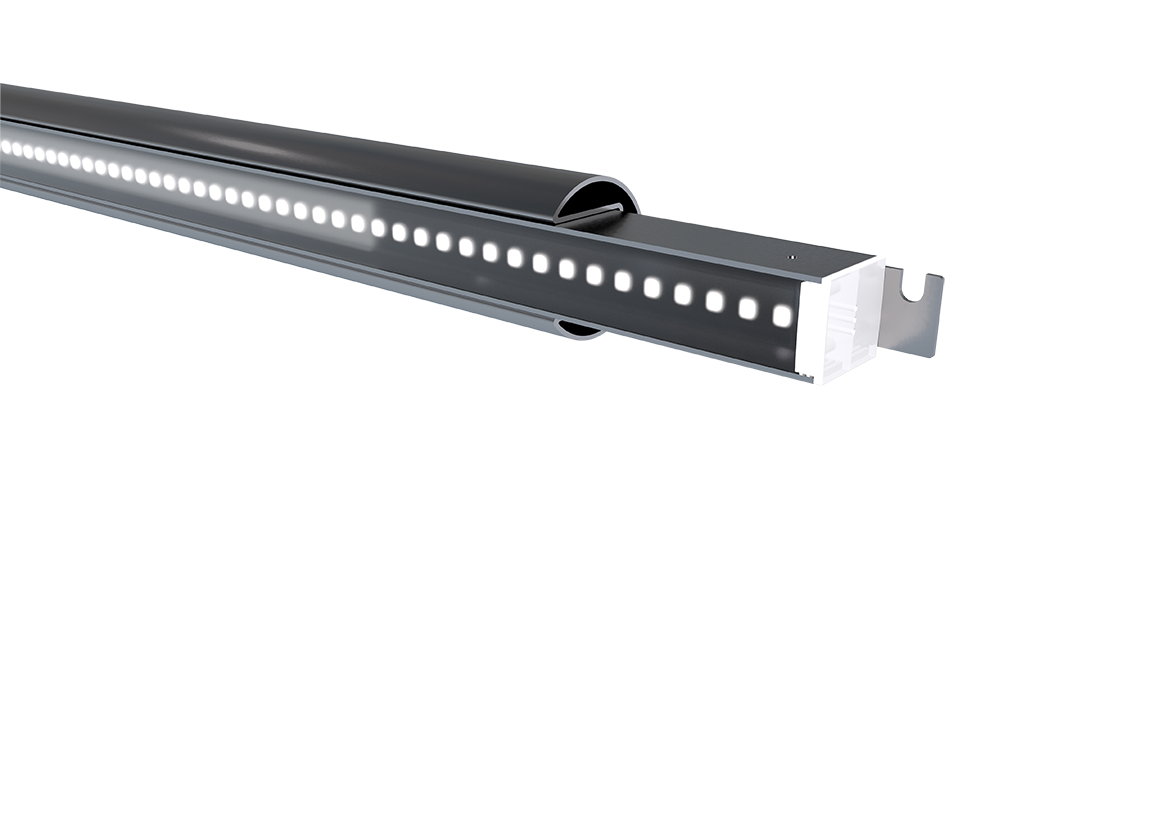

Handrail light OHR1 4020

properties

lifespan	L80B10 60,000h @ 25 ° C
Ambient temperature	-20 ... + 50 ° C
Storage & transport temperature	-25 ... + 70 ° C
nominal voltage	DC 48 V
Housing material	Stainless steel V4A
Glow wire resistance	650 ° C
Protection class	III
Protection mode	IP67, IP69, IP69K

Impact resistance	IK10
Connection type	Connector IP67
Color fidelity	SDCM 3
Colour rendering index	typ. 92
Installation dimensions width [mm]	27
Installation dimensions height [mm]	30 mm

Konfiguration und Order-Code-Generierung für OHR1 4020

Ihre Auswahl ergab keine Treffer!

Performance class

Auswählen

Beam angle

Auswählen

Light color

Auswählen

length

Auswählen

Control

Auswählen

Mögliche Konfigurationen (64)

Product Code	performance class	emission angle	Light color	Luminous flux	length	width	height	Control	performance recording
OHR1 N27 385 922 CL L1	Level 1	110 °	2200 K	190 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 927 CL L1	Level 1	110 °	2700 K	200 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 930 CL L1	Level 1	110 °	3000 K	200 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 940 CL L1	Level 1	110 °	4000 K	220 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 710 922 CL L1	Level 1	110 °	2200 K	380 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 927 CL L1	Level 1	110 °	2700 K	390 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 930 CL L1	Level 1	110 °	3000 K	390 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 940 CL L1	Level 1	110 °	4000 K	430 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 1035 922 CL L1	Level 1	110 °	2200 K	560 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 927 CL L1	Level 1	110 °	2700 K	590 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 930 CL L1	Level 1	110 °	3000 K	590 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 940 CL L1	Level 1	110 °	4000 K	650 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1360 922 CL L1	Level 1	110 °	2200 K	750 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 927 CL L1	Level 1	110 °	2700 K	780 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 930 CL L1	Level 1	110 °	3000 K	780 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 940 CL L1	Level 1	110 °	4000 K	860 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 385 922 CL L2	Level 2	110 °	2200 K	470 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 927 CL L2	Level 2	110 °	2700 K	470 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 930 CL L2	Level 2	110 °	3000 K	470 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 940 CL L2	Level 2	110 °	4000 K	520 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 710 922 CL L2	Level 2	110 °	2200 K	940 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 927 CL L2	Level 2	110 °	2700 K	940 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 930 CL L2	Level 2	110 °	3000 K	940 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 940 CL L2	Level 2	110 °	3000 K	1040 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 1035 922 CL L2	Level 2	110 °	2200 K	1400 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 927 CL L2	Level 2	110 °	2700 K	1410 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 930 CL L2	Level 2	110 °	3000 K	1410 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 940 CL L2	Level 2	110 °	4000 K	1560 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1360 922 CL L2	Level 2	110 °	2200 K	1870 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 927 CL L2	Level 2	110 °	2700 K	1870 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 930 CL L2	Level 2	110 °	3000 K	1870 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 940 CL L2	Level 2	110 °	4000 K	2070 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 385 922 DF L1	Level 1	110 °	2200 K	160 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 927 DF L1	Level 1	110 °	2700 K	170 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 930 DF L1	Level 1	110 °	3000 K	170 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 385 940 DF L1	Level 1	110 °	4000 K	190 lm	385 mm	27 mm	30 mm	D-Wire	2.4 W.
OHR1 N27 710 922 DF L1	Level 1	110 °	2200 K	320 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 927 DF L1	Level 1	110 °	2700 K	340 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 930 DF L1	Level 1	110 °	3000 K	340 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 710 940 DF L1	Level 1	110 °	4000 K	370 lm	710 mm	27 mm	30 mm	D-Wire	4.5 W
OHR1 N27 1035 922 DF L1	Level 1	110 °	2200 K	490 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 927 DF L1	Level 1	110 °	2700 K	500 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 930 DF L1	Level 1	110 °	3000 K	500 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1035 940 DF L1	Level 1	110 °	4000 K	560 lm	1035 mm	27 mm	30 mm	D-Wire	6.5 W
OHR1 N27 1360 922 DF L1	Level 1	110 °	2200 K	650 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 927 DF L1	Level 1	110 °	2700 K	670 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 930 DF L1	Level 1	110 °	3000 K	670 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 1360 940 DF L1	Level 1	110 °	4000 K	740 lm	1360 mm	27 mm	30 mm	D-Wire	8.5 W
OHR1 N27 385 922 DF L2	Level 2	110 °	2200 K	400 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 927 DF L2	Level 2	110 °	2700 K	410 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 930 DF L2	Level 2	110 °	3000 K	410 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 385 940 DF L2	Level 2	110 °	4000 K	450 lm	385 mm	27 mm	30 mm	D-Wire	6.3 W
OHR1 N27 710 922 DF L2	Level 2	110 °	2200 K	810 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 927 DF L2	Level 2	110 °	2700 K	810 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 930 DF L2	Level 2	110 °	3000 K	810 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 710 940 DF L2	Level 2	110 °	4000 K	900 lm	710 mm	27 mm	30 mm	D-Wire	11.7 W
OHR1 N27 1035 922 DF L2	Level 2	110 °	2200 K	1210 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 927 DF L2	Level 2	110 °	3000 K	1220 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 930 DF L2	Level 2	110 °	3000 K	1220 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1035 940 DF L2	Level 2	110 °	4000 K	1340 lm	1035 mm	27 mm	30 mm	D-Wire	17 W.
OHR1 N27 1360 922 DF L2	Level 2	110 °	2200 K	1610 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 927 DF L2	Level 2	110 °	2700 K	1620 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 930 DF L2	Level 2	110 °	3000 K	1620 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
OHR1 N27 1360 940 DF L2	Level 2	110 °	4000 K	1790 lm	1360 mm	27 mm	30 mm	D-Wire	22.3 W.
