Handrail light OHR2

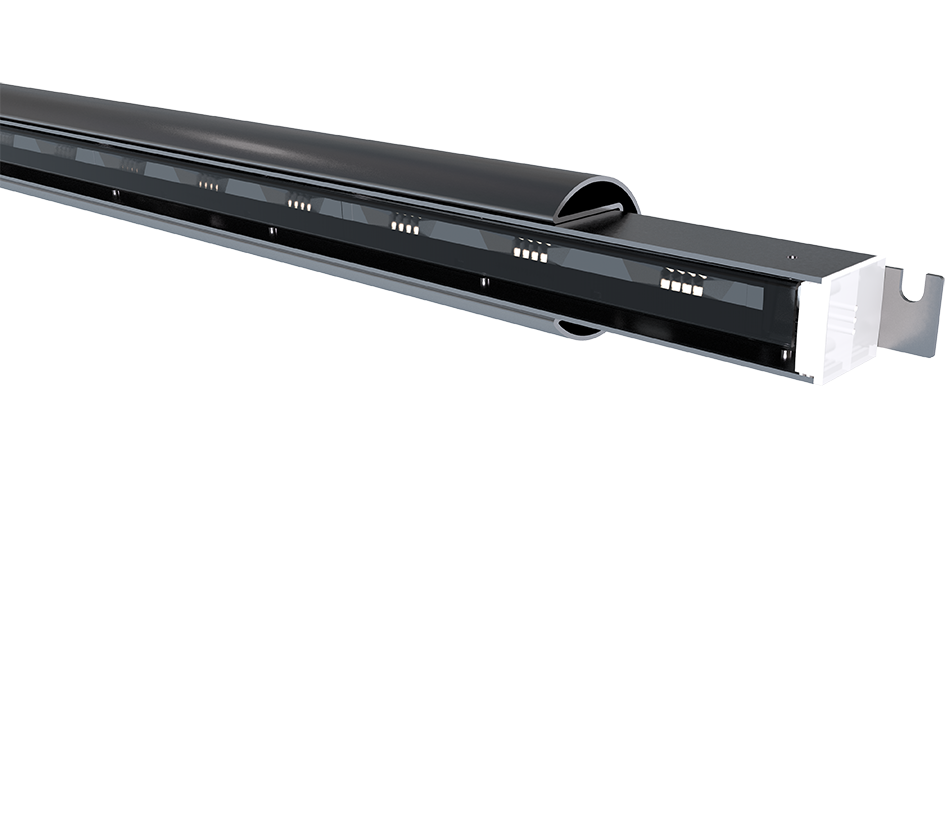

The handrail insert OHR2 is a minimalist lighting solution for illuminating accessible areas and stairs. The handrail insert is designed for installation in standard handrail systems with grooves of 27 x 30 cm and is therefore almost invisible to the viewer.
At night, the handrail insert illuminates the traffic areas to be illuminated in a highly efficient and contemporary way thanks to its high-precision micro-reflectors and the resulting asymmetrical light characteristics. The robust construction with a V4A stainless steel housing as well as an impact-resistant full encapsulation make the handrail insert OHR2 extremely weather-resistant and at the same time vandal-proof.

Light distribution

robustness

Glare control

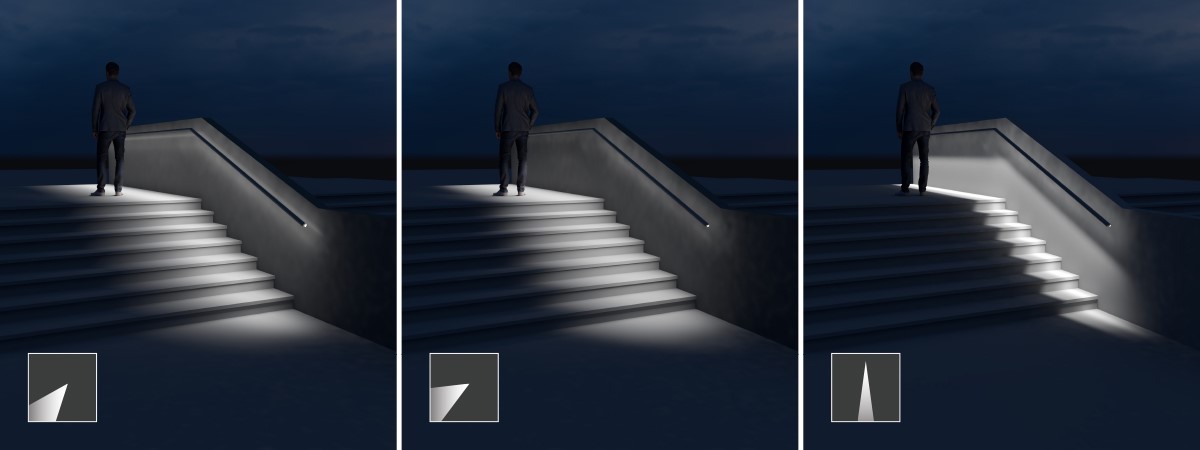

A modular selection of beam angles allows running surfaces to be evenly illuminated and fine light accents to emphasize material and architecture.

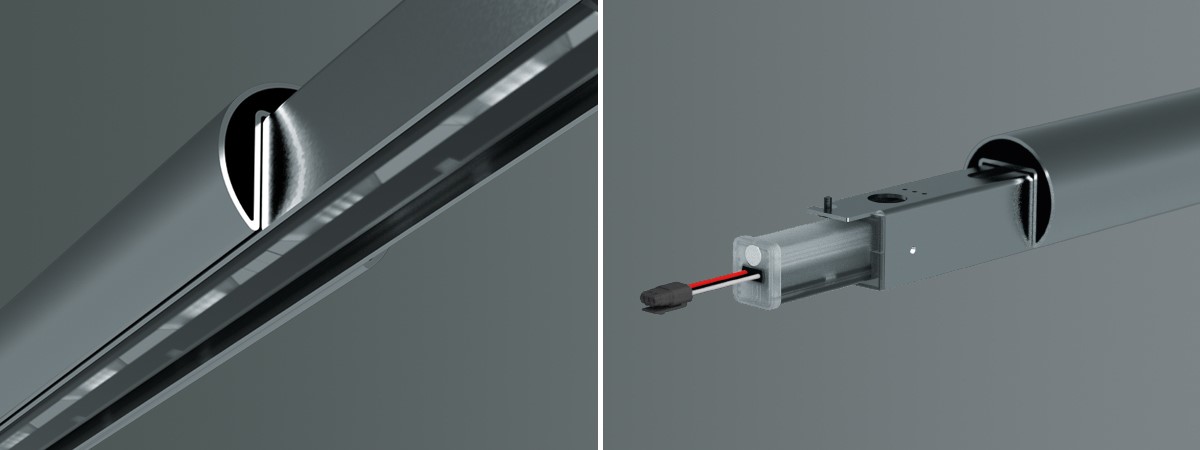

The encapsulation of the LED elements ensures a longer service life, improved light quality, protection against vandalism and against external influences such as moisture and heat (IP 67, 69, 69K)

The Elements microreflectors ensure maximum glare control and direct the light where it belongs.

properties

lifespan	L80B10 60,000h @ 25 ° C
Ambient temperature	-20 ... + 50 ° C
Storage & transport temperature	-25 ... + 70 ° C
nominal voltage	DC 48 V
Housing material	Stainless steel V4A
Glow wire resistance	650 ° C
Protection class	III
Protection mode	IP67, IP69, IP69K

Impact resistance	IK10
Connection type	Connector IP67
Color fidelity	SDCM 3
Colour rendering index	typ. 92

Configurations

Product Code	performance class	emission angle	Light color	Luminous flux	length	width	height	Control	performance recording
OHR2 N27 385 922 A1 L1	Level 1	Asymmetric 01	2200 K	110 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 927 A1 L1	Level 1	Asymmetric 01	2700 K	140 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 930 A1 L1	Level 1	Asymmetric 01	3000 K	140 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 940 A1 L1	Level 1	Asymmetric 01	4000 K	150 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 922 A2 L1	Level 1	Asymmetric 02	2200 K	125 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 927 A2 L1	Level 1	Asymmetric 02	2700 K	160 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 930 A2 L1	Level 1	Asymmetric 02	3000 K	170 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 940 A2 L1	Level 1	Asymmetric 02	4000 K	180 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 922 NAR L1	Level 1	15 ° x 65 °	2200 K	110 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 927 NAR L1	Level 1	15 ° x 65 °	2700 K	140 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 930 NAR L1	Level 1	15 ° x 65 °	3000 K	140 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 385 940 NAR L1	Level 1	15 ° x 65 °	4000 K	150 lm	385 mm	27 mm	30 mm	D-Wire	2.7 W.
OHR2 N27 710 922 A1 L1	Level 1	Asymmetric 01	2200 K	210 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 927 A1 L1	Level 1	Asymmetric 01	2700 K	270 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 930 A1 L1	Level 1	Asymmetric 01	3000 K	280 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 940 A1 L1	Level 1	Asymmetric 01	4000 K	300 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 922 A2 L1	Level 1	Asymmetric 02	2200 K	250 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 927 A2 L1	Level 1	Asymmetric 02	2700 K	320 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 930 A2 L1	Level 1	Asymmetric 02	3000 K	340 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 940 A2 L1	Level 1	Asymmetric 02	4000 K	360 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 922 NAR L1	Level 1	15 ° x 65 °	2200 K	210 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 927 NAR L1	Level 1	15 ° x 65 °	2700 K	270 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 930 NAR L1	Level 1	15 ° x 65 °	3000 K	280 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 710 940 NAR L1	Level 1	15 ° x 65 °	4000 K	300 lm	710 mm	27 mm	30 mm	D-Wire	5.3 W
OHR2 N27 1035 922 A1 L1	Level 1	Asymmetric 01	2200 K	310 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 927 A1 L1	Level 1	Asymmetric 01	2700 K	400 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 930 A1 L1	Level 1	Asymmetric 01	3000 K	410 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 940 A1 L1	Level 1	Asymmetric 01	4000 K	450 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 922 A2 L1	Level 1	Asymmetric 02	2200 K	375 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 927 A2 L1	Level 1	Asymmetric 02	2700 K	480 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 930 A2 L1	Level 1	Asymmetric 02	3000 K	500 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 940 A2 L1	Level 1	Asymmetric 02	4000 K	540 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 922 NAR L1	Level 1	15 ° x 65 °	2200 K	310 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 927 NAR L1	Level 1	15 ° x 65 °	2700 K	400 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 930 NAR L1	Level 1	15 ° x 65 °	3000 K	410 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 1035 940 NAR L1	Level 1	15 ° x 65 °	4000 K	450 lm	1035 mm	27 mm	30 mm	D-Wire	8.0 W
OHR2 N27 385 922 A1 L2	Level 2	Asymmetric 01	2200 K	260 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 927 A1 L2	Level 2	Asymmetric 01	2700 K	340 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 930 A1 L2	Level 2	Asymmetric 01	3000 K	350 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 940 A1 L2	Level 2	Asymmetric 01	4000 K	380 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 922 A2 L2	Level 2	Asymmetric 02	2200 K	325 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 927 A2 L2	Level 2	Asymmetric 02	2700 K	420 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 930 A2 L2	Level 2	Asymmetric 02	3000 K	440 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 940 A2 L2	Level 2	Asymmetric 02	4000 K	470 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 922 NAR L2	Level 2	15 ° x 65 °	2200 K	260 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 927 NAR L2	Level 2	15 ° x 65 °	2700 K	340 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 930 NAR L2	Level 2	15 ° x 65 °	3000 K	350 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 385 940 NAR L2	Level 2	15 ° x 65 °	4000 K	380 lm	385 mm	27 mm	30 mm	D-Wire	6.7 W
OHR2 N27 710 922 A1 L2	Level 2	Asymmetric 01	2200 K	525 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 927 A1 L2	Level 2	Asymmetric 01	2700 K	680 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 930 A1 L2	Level 2	Asymmetric 01	3000 K	700 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 940 A1 L2	Level 2	Asymmetric 01	4000 K	760 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 922 A2 L2	Level 2	Asymmetric 02	2200 K	650 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 927 A2 L2	Level 2	Asymmetric 02	2700 K	840 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 930 A2 L2	Level 2	Asymmetric 02	3000 K	870 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 940 A2 L2	Level 2	Asymmetric 02	4000 K	940 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 922 NAR L2	Level 2	15 ° x 65 °	2200 K	525 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 927 NAR L2	Level 2	15 ° x 65 °	2700 K	680 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 930 NAR L2	Level 2	15 ° x 65 °	3000 K	700 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 710 940 NAR L2	Level 2	15 ° x 65 °	4000 K	760 lm	710 mm	27 mm	30 mm	D-Wire	13.3 W.
OHR2 N27 1035 922 A1 L2	Level 2	Asymmetric 01	2200 K	790 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 927 A1 L2	Level 2	Asymmetric 01	2700 K	1010 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 930 A1 L2	Level 2	Asymmetric 01	3000 K	1050 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 940 A1 L2	Level 2	Asymmetric 01	4000 K	1140 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 922 A2 L2	Level 2	Asymmetric 02	2200 K	980 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 927 A2 L2	Level 2	Asymmetric 02	2000 K	1250 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 930 A2 L2	Level 2	Asymmetric 02	3000 K	1300 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 940 A2 L2	Level 2	Asymmetric 02	4000 K	1410 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 922 NAR L2	Level 2	15 ° x 65 °	2200 K	790 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 927 NAR L2	Level 2	15 ° x 65 °	2700 K	1010 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 930 NAR L2	Level 2	15 ° x 65 °	3000 K	1050 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
OHR2 N27 1035 940 NAR L2	Level 2	15 ° x 65 °	4000 K	1140 lm	1035 mm	27 mm	30 mm	D-Wire	20.0 W
